AxelGlobe Tasking API (2.0.6)

Download OpenAPI specification:Download

AxelGlobe Tasking API

The AxelGlobe Tasking API allows for automation of our satellite tasking process. You can request a specific area of interest be captured at a specific date and time.

Status

Beta

Terms

List of terms used in the API

Term	Meaning
AOI	Area of Interest. Some geographic area (Polygon) representing the area that is interested in being captures by a satellite.
Capture	A single image taken by a satellite
Task Candidate	Information about a possible future capture. Will have a specific area (footprint) and capture time.
Task Plan	A combination of an AOI and TOI used to plan possible satellite captures. Task plans are just information for planning and do not automatically schedule captures.
Task Request	A request to schedule a capture. This will consume a Task Credit and we will make a best effort to schedule a satellite to take a capture matching the requested Candidate.
TOI	Time of Interest. Some time range that a Task Plan is valid for. Note this can not be created too far in the future.

API Overview

The structure of the AxelGlobe Tasking API follows the OGC API "Features" standard. Each collection of features are represented as GeoJSON.

The typical tasking workflow has the following steps:

Authenticate
Create a Task Plan
Review list of Task Candidates
Request Task be scheduled
Check Task status and download data

Step 1: Authenticate

Before connecting to the API you must generate a Token with credentials from our platform. Please contact us for more information about API access.

Use the Create an authorization Token request to generate a token. Securely store this token locally for up to 24 hours. Use this token for all subsequent requests in a session. After the token expires you can request a new one.

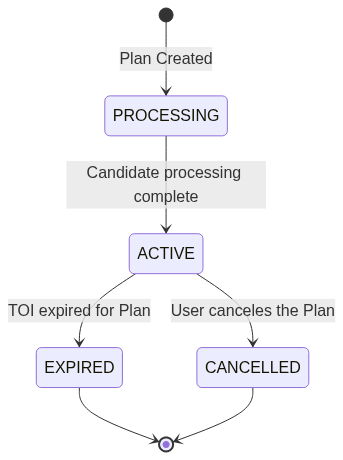

Step 1: Create a Task Plan

To get started tasking you have to plan a capture. This will allow our system to generate capture candidates that have been calculated and validated so they can be scheduled.

To create a Task Plan make a POST request to the Create Task Plan endpoint.

Note the validation rules for a Task Plan in the request body schema below.

Step 3: Review list of Task Candidates

Once the Task Plan is created our system will take up to 3 hours to generate validated Task Candidates.

After waiting 3 hours then list all the candidates using the List Candidates endpoint. This endpoint is paginated, and a the full list can be fetched by following the links with of type rel=next.

Note: if the list of candidates is empty after 3 or more hours then we are not able to capture the planned AOI or TOI.

At this point any of the Candidates are able to be tasked. Review the list and decide on the optimal Task Candidate that fits your needs.

Step 4: Request Task be scheduled

To schedule a Task Candidate create a Task Request using the Create Task request endpoint.

Provide the ID of the Candidate and the priority of the Task.

Note: this must be done within the lifetime of a Candidate (within approximately 3 hours after the candidate was created). If the Candidate is expired then fetch the list Candidate again to get fresh ones.

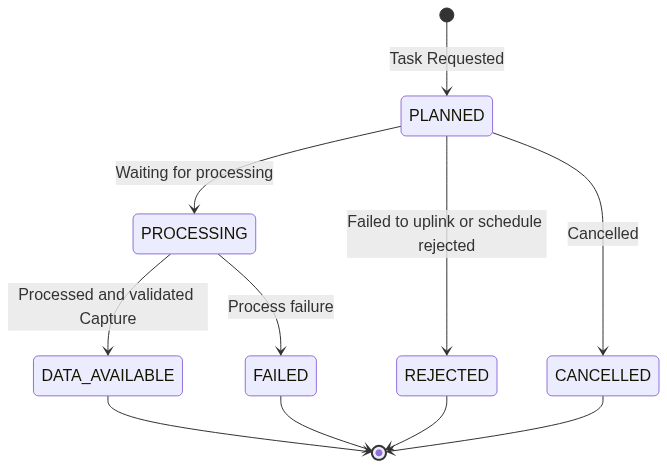

Step 5: Check Task status and download data

After the Task Request is accepted you can check the status of the Request. Use the Task Request Details endpoint to check the status of the Request.

We recommend polling the API approximately once per hour to check for status updates. Once the status becomes DATA_AVAILABLE there will be a link to our STAC API with all the data from the capture. Generally data will be available 24-48 hours after the capture.

Authentication

To use the API you need to create a Token with our authentication server.

This token should be reused between requests until it expires.

Create an authorization Token

how to get token

Authorizations:

None

Request Body schema: application/json
required

Authorize Token

grant_type required	string Value: "client_credentials"
audience required	string Value: "https://api.axelglobe.com"
client_id required	string Client ID provided by the AxelGlobe platform. Do not share this information with anyone.
client_secret required	string Client Secret provided by the AxelGlobe platform. Do not share this information with anyone.

Responses

Response Schema: application/json

access_token required	string <JWT> Token to use when accessing the AxelGlobe Tasking API
expires_in required	integer Length of time in seconds from generation time that the token will be valid
token_type required	string Value: "Bearer"

Request samples

Payload
curl

Content type

application/json

{"grant_type": "client_credentials",
"audience": "https://api.axelglobe.com",
"client_id": "ABCDEF00000000000",
"client_secret": "SECRET_VALUE"
}

Response samples

200

Content type

application/json

{"access_token": "eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJzdWIiOiIxMjM0NTY3ODkwIiwibmFtZSI6IkpvaG4gRG9lIiwiaWF0IjoxNTE2MjM5MDIyfQ.iUCROHt6JHANdtzT6aOuUgOqVFRalOW20SbzRsn5SkI",
"expires_in": 86400,
"token_type": "Bearer"
}

Capabilities

OCC Spatial Data on the Web Best Practices

Landing Page

Follows OGC API - Features (WFS 3) Part-1 Core: 7.2.

Authorizations:

oauth_token

Responses

Response Schema: application/json

title

required

string

description

required

string

Array of objects (link)

Array

href required	string
rel required	string
type	string
hreflang	string
title	string
length	integer

Request samples

curl

curl https://sandbox-api.axelglobe.com/wfs/tasking/v2/ \
-H "Authorization: Bearer {{oauth_token}}""

Response samples

200

Content type

application/json

{"title": "The AxelGlobe Tasking API",
"description": "Access to the tasking capabilities on the AxelGlobe via a REST API",
"links": [{"href": "/wfs/tasking/v2/",
"rel": "self",
"type": "application/json",
"title": "Landing page"
},
{"href": "/wfs/tasking/v2/conformance",
"rel": "conformance",
"type": "application/json",
"title": "OGC API - Features (WFS 3) conformance classes implemented by this server"
},
{"href": "/wfs/tasking/v2/collections",
"rel": "data",
"type": "application/json",
"title": "Metadata about the feature collections"
}
]
}

Conformance information

Follows OGC API - Features (WFS 3) Part-1 Core: 7.2.

Authorizations:

oauth_token

Responses

Response Schema: application/json

conformsTo

Array of strings

Response samples

200

Content type

application/json

{"conformsTo": ["http://www.opengis.net/spec/ogcapi-features-1/1.0/req/core",
"http://www.opengis.net/spec/ogcapi-features-1/1.0/req/geojson",
"http://www.opengis.net/spec/ogcapi-features-1/1.0/req/oas30",
"http://www.opengis.net/spec/ogcapi-features-3/1.0/conf/queryables"
]
}

Collections information

Follows OGC API - Features (WFS 3) Part-1 Core: 7.2.

Authorizations:

oauth_token

Responses

Response Schema: application/json

required

Array of objects (link)

Array

href required	string
rel required	string
type	string
hreflang	string
title	string
length	integer

required

Array of objects (collection)

Array

id

required

string

Enum: "satellites" "plans" "candidates" "requests"

title

string

description

string

itemType

string

Value: "feature"

object (extent)

The extent of the features in the collection. In the Core only spatial and temporal extents are specified. Extensions may add additional members to represent other extents, for example, thermal or pressure ranges.

	object The spatial extent of the features in the collection.
	object The temporal extent of the features in the collection.

crs

Array of strings

Default: ["http://www.opengis.net/def/crs/OGC/1.3/CRS84"]

the list of coordinate reference systems supported by the service

required

Array of objects (link)

Array

href required	string
rel required	string
type	string
hreflang	string
title	string
length	integer

Response samples

200

Content type

application/json

{"links": [{"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections",
"rel": "self",
"type": "application/json"
}
],
"collections": [{"id": "satellites",
"title": "Request Captures",
"description": "Request Captures",
"itemType": "feature",
"extent": {"spatial": {"bbox": [[-180,
-90,
180,
90
]
],
"crs": "http://www.opengis.net/def/crs/OGC/1.3/CRS84"
},
"temporal": {"interval": [["2011-11-11T12:22:11Z",
null
]
],
"trs": "http://www.opengis.net/def/uom/ISO-8601/0/Gregorian"
}
},
"crs": ["http://www.opengis.net/def/crs/OGC/1.3/CRS84"
],
"links": [{"rel": "items",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/requests/items",
"type": "application/geo+json"
}
]
}
]
}

Satellites

Satellites Metadata

Authorizations:

oauth_token

Responses

Response Schema: application/json

id

string

Value: "satellites"

title

string

description

string

itemType

string

Value: "feature"

object (extent)

The extent of the features in the collection. In the Core only spatial and temporal extents are specified. Extensions may add additional members to represent other extents, for example, thermal or pressure ranges.

object

The spatial extent of the features in the collection.

bbox

Array of numbers non-empty [ items [ 4 .. 6 ] items ]

One or more bounding boxes that describe the spatial extent of the dataset. In the Core only a single bounding box is supported. Extensions may support additional areas. If multiple areas are provided, the union of the bounding boxes describes the spatial extent.

crs

string

Default: "http://www.opengis.net/def/crs/OGC/1.3/CRS84"

Value: "http://www.opengis.net/def/crs/OGC/1.3/CRS84"

Coordinate reference system of the coordinates in the spatial extent (property bbox). The default reference system is WGS 84 longitude/latitude. In the Core this is the only supported coordinate reference system. Extensions may support additional coordinate reference systems and add additional enum values.

object

The temporal extent of the features in the collection.

interval

Array of null or strings non-empty [ items <date-time > = 2 items [ items <date-time > ] ]

One or more time intervals that describe the temporal extent of the dataset. The value null is supported and indicates an open time intervall. In the Core only a single time interval is supported. Extensions may support multiple intervals. If multiple intervals are provided, the union of the intervals describes the temporal extent.

trs

string

Default: "http://www.opengis.net/def/uom/ISO-8601/0/Gregorian"

Value: "http://www.opengis.net/def/uom/ISO-8601/0/Gregorian"

Coordinate reference system of the coordinates in the temporal extent (property interval). The default reference system is the Gregorian calendar. In the Core this is the only supported temporal reference system. Extensions may support additional temporal reference systems and add additional enum values.

crs

Array of strings

Default: ["http://www.opengis.net/def/crs/OGC/1.3/CRS84"]

the list of coordinate reference systems supported by the service

Array of objects (link)

Array

href required	string
rel required	string
type	string
hreflang	string
title	string
length	integer

Response samples

200

Content type

application/json

{"id": "satellites",
"title": "AxelGlobe Satellites",
"description": "List of satellites that can be Tasked with the AxelGlobe Tasking API",
"itemType": "feature",
"extent": {"spatial": {"bbox": [[-180,
-90,
180,
90
]
],
"crs": "http://www.opengis.net/def/crs/OGC/1.3/CRS84"
},
"temporal": {"interval": [["2011-11-11T12:22:11Z",
null
]
],
"trs": "http://www.opengis.net/def/uom/ISO-8601/0/Gregorian"
}
},
"crs": ["http://www.opengis.net/def/crs/OGC/1.3/CRS84"
],
"links": [{"rel": "items",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/satellites/items",
"type": "application/geo+json"
}
]
}

Describe Tasks Plans

Task Plans Metadata

Authorizations:

oauth_token

Responses

Response Schema: application/json

id

string

title

string

description

string

itemType

string

Value: "feature"

object (extent)

The extent of the features in the collection. In the Core only spatial and temporal extents are specified. Extensions may add additional members to represent other extents, for example, thermal or pressure ranges.

object

The spatial extent of the features in the collection.

bbox

Array of numbers non-empty [ items [ 4 .. 6 ] items ]

One or more bounding boxes that describe the spatial extent of the dataset. In the Core only a single bounding box is supported. Extensions may support additional areas. If multiple areas are provided, the union of the bounding boxes describes the spatial extent.

crs

string

Default: "http://www.opengis.net/def/crs/OGC/1.3/CRS84"

Value: "http://www.opengis.net/def/crs/OGC/1.3/CRS84"

Coordinate reference system of the coordinates in the spatial extent (property bbox). The default reference system is WGS 84 longitude/latitude. In the Core this is the only supported coordinate reference system. Extensions may support additional coordinate reference systems and add additional enum values.

object

The temporal extent of the features in the collection.

interval

Array of null or strings non-empty [ items <date-time > = 2 items [ items <date-time > ] ]

One or more time intervals that describe the temporal extent of the dataset. The value null is supported and indicates an open time intervall. In the Core only a single time interval is supported. Extensions may support multiple intervals. If multiple intervals are provided, the union of the intervals describes the temporal extent.

trs

string

Default: "http://www.opengis.net/def/uom/ISO-8601/0/Gregorian"

Value: "http://www.opengis.net/def/uom/ISO-8601/0/Gregorian"

Coordinate reference system of the coordinates in the temporal extent (property interval). The default reference system is the Gregorian calendar. In the Core this is the only supported temporal reference system. Extensions may support additional temporal reference systems and add additional enum values.

crs

Array of strings

Default: ["http://www.opengis.net/def/crs/OGC/1.3/CRS84"]

the list of coordinate reference systems supported by the service

Array of objects (link)

Array

href required	string
rel required	string
type	string
hreflang	string
title	string
length	integer

Response samples

200

Content type

application/json

{"id": "plans",
"title": "Registered AOIs for planning captures",
"description": "Manage AOIs for planning captures",
"itemType": "feature",
"extent": {"spatial": {"bbox": [[-180,
-90,
180,
90
]
],
"crs": "http://www.opengis.net/def/crs/OGC/1.3/CRS84"
},
"temporal": {"interval": [["2011-11-11T12:22:11Z",
null
]
],
"trs": "http://www.opengis.net/def/uom/ISO-8601/0/Gregorian"
}
},
"crs": ["http://www.opengis.net/def/crs/OGC/1.3/CRS84"
],
"links": [{"rel": "items",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/plans/items",
"type": "application/geo+json"
}
]
}

Describe Candidates

candidates Metadata

Authorizations:

oauth_token

Responses

Response Schema: application/json

id

string

title

string

description

string

itemType

string

Value: "feature"

object (extent)

The extent of the features in the collection. In the Core only spatial and temporal extents are specified. Extensions may add additional members to represent other extents, for example, thermal or pressure ranges.

object

The spatial extent of the features in the collection.

bbox

Array of numbers non-empty [ items [ 4 .. 6 ] items ]

One or more bounding boxes that describe the spatial extent of the dataset. In the Core only a single bounding box is supported. Extensions may support additional areas. If multiple areas are provided, the union of the bounding boxes describes the spatial extent.

crs

string

Default: "http://www.opengis.net/def/crs/OGC/1.3/CRS84"

Value: "http://www.opengis.net/def/crs/OGC/1.3/CRS84"

Coordinate reference system of the coordinates in the spatial extent (property bbox). The default reference system is WGS 84 longitude/latitude. In the Core this is the only supported coordinate reference system. Extensions may support additional coordinate reference systems and add additional enum values.

object

The temporal extent of the features in the collection.

interval

Array of null or strings non-empty [ items <date-time > = 2 items [ items <date-time > ] ]

One or more time intervals that describe the temporal extent of the dataset. The value null is supported and indicates an open time intervall. In the Core only a single time interval is supported. Extensions may support multiple intervals. If multiple intervals are provided, the union of the intervals describes the temporal extent.

trs

string

Default: "http://www.opengis.net/def/uom/ISO-8601/0/Gregorian"

Value: "http://www.opengis.net/def/uom/ISO-8601/0/Gregorian"

Coordinate reference system of the coordinates in the temporal extent (property interval). The default reference system is the Gregorian calendar. In the Core this is the only supported temporal reference system. Extensions may support additional temporal reference systems and add additional enum values.

crs

Array of strings

Default: ["http://www.opengis.net/def/crs/OGC/1.3/CRS84"]

the list of coordinate reference systems supported by the service

Array of objects (link)

Array

href required	string
rel required	string
type	string
hreflang	string
title	string
length	integer

Response samples

200

Content type

application/json

{"id": "candidates",
"title": "Candidate Captures",
"description": "Candidate Captures",
"itemType": "feature",
"extent": {"spatial": {"bbox": [[-180,
-90,
180,
90
]
],
"crs": "http://www.opengis.net/def/crs/OGC/1.3/CRS84"
},
"temporal": {"interval": [["2011-11-11T12:22:11Z",
null
]
],
"trs": "http://www.opengis.net/def/uom/ISO-8601/0/Gregorian"
}
},
"crs": ["http://www.opengis.net/def/crs/OGC/1.3/CRS84"
],
"links": [{"rel": "items",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/candidates/items",
"type": "application/geo+json"
}
]
}

Describe Task Requests

Task Request Metadata

Authorizations:

oauth_token

Responses

Response Schema: application/json

id

string

Value: "requests"

title

string

description

string

itemType

string

Value: "feature"

object (extent)

The extent of the features in the collection. In the Core only spatial and temporal extents are specified. Extensions may add additional members to represent other extents, for example, thermal or pressure ranges.

object

The spatial extent of the features in the collection.

bbox

Array of numbers non-empty [ items [ 4 .. 6 ] items ]

One or more bounding boxes that describe the spatial extent of the dataset. In the Core only a single bounding box is supported. Extensions may support additional areas. If multiple areas are provided, the union of the bounding boxes describes the spatial extent.

crs

string

Default: "http://www.opengis.net/def/crs/OGC/1.3/CRS84"

Value: "http://www.opengis.net/def/crs/OGC/1.3/CRS84"

Coordinate reference system of the coordinates in the spatial extent (property bbox). The default reference system is WGS 84 longitude/latitude. In the Core this is the only supported coordinate reference system. Extensions may support additional coordinate reference systems and add additional enum values.

object

The temporal extent of the features in the collection.

interval

Array of null or strings non-empty [ items <date-time > = 2 items [ items <date-time > ] ]

One or more time intervals that describe the temporal extent of the dataset. The value null is supported and indicates an open time intervall. In the Core only a single time interval is supported. Extensions may support multiple intervals. If multiple intervals are provided, the union of the intervals describes the temporal extent.

trs

string

Default: "http://www.opengis.net/def/uom/ISO-8601/0/Gregorian"

Value: "http://www.opengis.net/def/uom/ISO-8601/0/Gregorian"

Coordinate reference system of the coordinates in the temporal extent (property interval). The default reference system is the Gregorian calendar. In the Core this is the only supported temporal reference system. Extensions may support additional temporal reference systems and add additional enum values.

crs

Array of strings

Default: ["http://www.opengis.net/def/crs/OGC/1.3/CRS84"]

the list of coordinate reference systems supported by the service

Array of objects (link)

Array

href required	string
rel required	string
type	string
hreflang	string
title	string
length	integer

Response samples

200

Content type

application/json

{"id": "requests",
"title": "Request Captures",
"description": "Request Captures",
"itemType": "feature",
"extent": {"spatial": {"bbox": [[-180,
-90,
180,
90
]
],
"crs": "http://www.opengis.net/def/crs/OGC/1.3/CRS84"
},
"temporal": {"interval": [["2011-11-11T12:22:11Z",
null
]
],
"trs": "http://www.opengis.net/def/uom/ISO-8601/0/Gregorian"
}
},
"crs": ["http://www.opengis.net/def/crs/OGC/1.3/CRS84"
],
"links": [{"rel": "items",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/requests/items",
"type": "application/geo+json"
}
]
}

Satellites

Information about our satellite constellation

List Satellites

List AxelGlobe Satellites

Authorizations:

oauth_token

query Parameters

limit	number <integer> [ 1 .. 20 ] Default: 10 Result pagination limit
offset	number <integer> >= 1 Result pagination offset

Responses

Response Schema: application/geo+json

type

required

string

Value: "FeatureCollection"

required

Array of objects (Satellite)

Array

type

required

string

Value: "Feature"

required

object

type required	string Value: "Polygon"
coordinates required	Array of arrays

id

required

string

required

object

platform required	string Name of the satellite. Matches the `platform` STAC property
international_designator required	string International Designator (COSPAR ID) of the satellite.
instruments required	Array of strings Items Value: "msi"
gsd required	number <float> Ground sample distance [m/px]
required	Array of objects
sat:orbit_state required	string Enum: "ascending" "descending"

required

Array of objects (link)

Array

href required	string
rel required	string
type	string
hreflang	string
title	string
length	integer

numberMatched

required

number <integer>

Response samples

200

Content type

application/geo+json

{"type": "FeatureCollection",
"features": [{"type": "Feature",
"geometry": {"type": "Polygon",
"coordinates": [ ]
},
"id": "GRUS-1B",
"properties": {"platform": "GRUS-1B",
"international_designator": "2021-022C",
"instruments": ["msi"
],
"gsd": 2.5,
"eo:bands": [{"name": "band1",
"common_name": "red",
"center_wavelength": 0.652,
"full_width_half_max": 0.063,
"solar_illumination": 1.5716542
}
],
"sat:orbit_state": "ascending"
}
}
],
"links": [{"rel": "self",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/satellites/items/?limit=1&offset=2",
"type": "application/geo+json"
},
{"rel": "next",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/satellites/items/?limit=1&offset=3",
"type": "application/geo+json"
},
{"rel": "prev",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/satellites/items/?limit=1&offset=1",
"type": "application/geo+json"
}
],
"numberMatched": 5
}

Satellite Details

Satellite Information

Authorizations:

oauth_token

path Parameters

satelliteId

required

string

Example: grus-1b

unique identifier for a Satellite

Responses

Response Schema: application/geo+json

type

required

string

Value: "Feature"

required

object

type required	string Value: "Polygon"
coordinates required	Array of arrays

id

required

string

required

object

platform

required

string

Name of the satellite. Matches the platform STAC property

international_designator

required

string

International Designator (COSPAR ID) of the satellite.

instruments

required

Array of strings

Items Value: "msi"

gsd

required

number <float>

Ground sample distance [m/px]

required

Array of objects

Array

name required	string
common_name required	string
center_wavelength required	number <float>
full_width_half_max	number <float>
solar_illumination	number <float>

sat:orbit_state

required

string

Enum: "ascending" "descending"

Response samples

200

Content type

application/geo+json

{"type": "Feature",
"geometry": {"type": "Polygon",
"coordinates": [ ]
},
"id": "GRUS-1B",
"properties": {"platform": "GRUS-1B",
"international_designator": "2021-022C",
"instruments": ["msi"
],
"gsd": 2.5,
"eo:bands": [{"name": "band1",
"common_name": "red",
"center_wavelength": 0.652,
"full_width_half_max": 0.063,
"solar_illumination": 1.5716542
}
],
"sat:orbit_state": "ascending"
}
}

Task Plans

Register an AOI to plan a capture

Create a Task Plan to get information about potential captures.

Task Plan Status

After creating a Plan it can take a few hours for candidates to be generated.

When a Plan has status ACTIVE then you can check for possible candidates using the rel=candidates link in the Plan response.

List Task Plans

List your task plans

Authorizations:

oauth_token

query Parameters

limit	number <integer> [ 1 .. 20 ] Default: 10 Result pagination limit
offset	number <integer> >= 1 Result pagination offset

Responses

Response Schema: application/geo+json

type

required

string

Value: "FeatureCollection"

required

Array of objects (Task Plan)

Array

type

required

string

Value: "Feature"

required

object

type required	string Value: "Polygon"
coordinates required	Array of arrays

id

required

string

required

object

created required	string <date-time>
name required	string
valid_start required	string <date-time>
valid_end required	string <date-time>
off_nadir_range required	Array of numbers <double> = 2 items [ items <double > [ 0 .. 15 ] ] Default: [0,15]
satellites required	Array of strings non-empty Items Enum: "GRUS-1A" "GRUS-1B" "GRUS-1C" "GRUS-1D" "GRUS-1E"
status required	string Enum: "PROCESSING" "ACTIVE" "EXPIRED" "CANCELLED" Plans can take a few hours to finish candidates processing. Active plans have finished processing and are in their valid time window. Expired Plans are past their valid time window.

required

Array of objects (link)

Array

href required	string
rel required	string
type	string
hreflang	string
title	string
length	integer

required

Array of objects (link)

Array

href required	string
rel required	string
type	string
hreflang	string
title	string
length	integer

numberMatched

required

number <integer>

Response samples

200

Content type

application/geo+json

{"type": "FeatureCollection",
"features": [{"type": "Feature",
"geometry": {"type": "Polygon",
"coordinates": [[ ]
]
},
"id": "VGFza1BsYW46MDAwMDAwMDAtMDAwMC0wMDAwLTAwMDAtMDAwMDAwMDAwMDAw",
"properties": {"created": "2025-07-03T12:10:45Z",
"name": "July rice crop monitoring",
"valid_start": "2025-07-01T00:10:59Z",
"valid_end": "2025-07-14T00:00:00Z",
"off_nadir_range": [0,
15
],
"satellites": ["GRUS-1A",
"GRUS-1B"
],
"status": "PROCESSING"
},
"links": [{"rel": "self",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/plans/items/VGFza1BsYW46MDAwMDAwMDAtMDAwMC0wMDAwLTAwMDAtMDAwMDAwMDAwMDAw",
"type": "application/geo+json"
},
{"rel": "candidates",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/candidates/items?filter=task_plan_id = 'VGFza1BsYW46MDAwMDAwMDAtMDAwMC0wMDAwLTAwMDAtMDAwMDAwMDAwMDAw'",
"type": "application/geo+json"
}
]
}
],
"links": [{"rel": "self",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/plans/items/?limit=10&offset=20",
"type": "application/geo+json"
},
{"rel": "next",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/plans/items/?limit=10&offset=30",
"type": "application/geo+json"
},
{"rel": "prev",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/plans/items/?limit=10&offset=10",
"type": "application/geo+json"
}
],
"numberMatched": 35
}

Create Task Plan

Create a new Task Plan Provide a Name, AOI and TOI. After 3 hours the system will generate Candidates for the Task Plan.

Authorizations:

oauth_token

Request Body schema: application/geo+json
required

Create a new Task Plan

type

required

string

Value: "Feature"

required

object

type required	string Value: "Polygon"
coordinates required	Array of arrays

required

object

name required	string [ 1 .. 64 ] characters ^(?=.[ -~])(?!.[.~\|\/${}%\\]).*$
valid_start required	string <date-time> Start date of Time of Interest for the Task.
valid_end required	string <date-time> End date of Time of Interest for the Task.
off_nadir_range	Array of numbers <double> = 2 items [ items <double > [ 0 .. 15 ] ] Default: [0,15] Optional range of acceptable off-nadir angles for the Task.
satellites	Array of strings non-empty Items Enum: "GRUS-1A" "GRUS-1B" "GRUS-1C" "GRUS-1D" "GRUS-1E" Optional list of acceptable satellites to use for the Task.

Responses

Response Schema: application/geo+json

type

required

string

Value: "Feature"

required

object

type required	string Value: "Polygon"
coordinates required	Array of arrays

id

required

string

required

object

created required	string <date-time>
name required	string
valid_start required	string <date-time>
valid_end required	string <date-time>
off_nadir_range required	Array of numbers <double> = 2 items [ items <double > [ 0 .. 15 ] ] Default: [0,15]
satellites required	Array of strings non-empty Items Enum: "GRUS-1A" "GRUS-1B" "GRUS-1C" "GRUS-1D" "GRUS-1E"
status required	string Enum: "PROCESSING" "ACTIVE" "EXPIRED" "CANCELLED" Plans can take a few hours to finish candidates processing. Active plans have finished processing and are in their valid time window. Expired Plans are past their valid time window.

required

Array of objects (link)

Array

href required	string
rel required	string
type	string
hreflang	string
title	string
length	integer

Request samples

Payload

Content type

application/geo+json

{"type": "Feature",
"geometry": {"type": "Polygon",
"coordinates": [[ ]
]
},
"properties": {"name": "July rice crop monitoring",
"valid_start": "2024-01-01T00:10:59Z",
"valid_end": "2024-01-01T00:10:59Z",
"off_nadir_range": [0,
10
],
"satellites": ["GRUS-1A",
"GRUS-1B"
]
}
}

Response samples

201

Content type

application/geo+json

{"type": "Feature",
"geometry": {"type": "Polygon",
"coordinates": [[ ]
]
},
"id": "VGFza1BsYW46MDAwMDAwMDAtMDAwMC0wMDAwLTAwMDAtMDAwMDAwMDAwMDAw",
"properties": {"created": "2025-07-03T12:10:45Z",
"name": "July rice crop monitoring",
"valid_start": "2025-07-01T00:10:59Z",
"valid_end": "2025-07-14T00:00:00Z",
"off_nadir_range": [0,
15
],
"satellites": ["GRUS-1A",
"GRUS-1B"
],
"status": "PROCESSING"
},
"links": [{"rel": "self",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/plans/items/VGFza1BsYW46MDAwMDAwMDAtMDAwMC0wMDAwLTAwMDAtMDAwMDAwMDAwMDAw",
"type": "application/geo+json"
},
{"rel": "candidates",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/candidates/items?filter=task_plan_id = 'VGFza1BsYW46MDAwMDAwMDAtMDAwMC0wMDAwLTAwMDAtMDAwMDAwMDAwMDAw'",
"type": "application/geo+json"
}
]
}

Task Plan Details

Data about a Task plan

Authorizations:

oauth_token

path Parameters

taskPlanId

required

string

unique identifier for a Task Plan

Responses

Response Schema: application/geo+json

type

required

string

Value: "Feature"

required

object

type required	string Value: "Polygon"
coordinates required	Array of arrays

id

required

string

required

object

created required	string <date-time>
name required	string
valid_start required	string <date-time>
valid_end required	string <date-time>
off_nadir_range required	Array of numbers <double> = 2 items [ items <double > [ 0 .. 15 ] ] Default: [0,15]
satellites required	Array of strings non-empty Items Enum: "GRUS-1A" "GRUS-1B" "GRUS-1C" "GRUS-1D" "GRUS-1E"
status required	string Enum: "PROCESSING" "ACTIVE" "EXPIRED" "CANCELLED" Plans can take a few hours to finish candidates processing. Active plans have finished processing and are in their valid time window. Expired Plans are past their valid time window.

required

Array of objects (link)

Array

href required	string
rel required	string
type	string
hreflang	string
title	string
length	integer

Response samples

200

Content type

application/geo+json

{"type": "Feature",
"geometry": {"type": "Polygon",
"coordinates": [[ ]
]
},
"id": "VGFza1BsYW46MDAwMDAwMDAtMDAwMC0wMDAwLTAwMDAtMDAwMDAwMDAwMDAw",
"properties": {"created": "2025-07-03T12:10:45Z",
"name": "July rice crop monitoring",
"valid_start": "2025-07-01T00:10:59Z",
"valid_end": "2025-07-14T00:00:00Z",
"off_nadir_range": [0,
15
],
"satellites": ["GRUS-1A",
"GRUS-1B"
],
"status": "PROCESSING"
},
"links": [{"rel": "self",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/plans/items/VGFza1BsYW46MDAwMDAwMDAtMDAwMC0wMDAwLTAwMDAtMDAwMDAwMDAwMDAw",
"type": "application/geo+json"
},
{"rel": "candidates",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/candidates/items?filter=task_plan_id = 'VGFza1BsYW46MDAwMDAwMDAtMDAwMC0wMDAwLTAwMDAtMDAwMDAwMDAwMDAw'",
"type": "application/geo+json"
}
]
}

Invalidate Task Plan

Cancel a Task Plan

Authorizations:

oauth_token

path Parameters

taskPlanId

required

string

unique identifier for a Task Plan

Responses

Response samples

204

Content type

application/json

""

Task Candidates

A Task Candidate is one calculated potential scene related to a Task Plan

List Candidates

List candidates for a Task Plan. This must be filtered to a Task Plan ID using the CQL2 Filter syntax.

Task Candidates have a similar structure to STAC Items. Review the scene footprints and properties to decide the optimal capture for your use case.

Example:

GET /wfs/tasking/v2/collections/candidates/items?filter=task_plan_id+=+'VGFza1BsYW46MDAwMDAwMDAtMDAwMC0wMDAwLTAwMDAtMDAwMDAwMDAwMDAw'

Authorizations:

oauth_token

query Parameters

filter required	string Example: filter=task_plan_id = 'VGFza1BsYW46MDAwMDAwMDAtMDAwMC0wMDAwLTAwMDAtMDAwMDAwMDAwMDAw' CQL2 Syntax filter. Must include a filter to a Task Plan by ID.
limit	number <integer> [ 1 .. 100 ] Default: 10 Result pagination limit
offset	number <integer> >= 1 Result pagination offset

Responses

Response Schema: application/geo+json

type

required

string

Value: "FeatureCollection"

required

Array of objects (Task Candidate)

Array

type

required

string

Value: "Feature"

id

required

string

required

object

type required	string Value: "Polygon"
coordinates required	Array of arrays

required

object

task_plan_id	string The original Task Plan that this Candidate is for
view:off_nadir required	number <double> [ 0 .. 90 ] The angle from the sensor between nadir (straight down) and the scene center. Measured in degrees (0-90)
view:sun_elevation required	number <double> [ -90 .. 90 ] Sun elevation angle. The angle from the tangent of the scene center point to the sun. Measured from the horizon in degrees (-90-90)
view:sun_azimuth required	number <double> [ 0 .. 360 ] Sun azimuth angle. From the scene center point on the ground, this is the angle between truth north and the sun. Measured clockwise in degrees (0-360).
plan_coverage required	number <double> [ 0 .. 100 ] Percentage of the Task Plan AOI this candidate footprint covers. Measured in percent (0-100).
start_datetime required	string <date-time> Time the candidate capture is expected to start
end_datetime required	string <date-time> Time the candidate capture is expected to end
platform required	string Enum: "GRUS-1A" "GRUS-1B" "GRUS-1C" "GRUS-1D" "GRUS-1E" Satellite that will take the capture
constellation required	string Value: "GRUS1"
valid_until required	string <date-time> Time in the future this candidate will no longer be valid to schedule. Please schedule the candidate before this date.

required

Array of objects (link)

Array

href required	string
rel required	string
type	string
hreflang	string
title	string
length	integer

required

Array of objects (link)

Array

href required	string
rel required	string
type	string
hreflang	string
title	string
length	integer

numberMatched

required

number <integer>

Response samples

200

Content type

application/geo+json

{"type": "FeatureCollection",
"features": [{"type": "Feature",
"id": "T3Bwb3J0dW5pdHlDYW5kaWRhdGU6OEFLckVYYTl6Z1lSekoyUA==",
"geometry": {"type": "Polygon",
"coordinates": [ ]
},
"properties": {"task_plan_id": "VGFza1BsYW46MDAwMDAwMDAtMDAwMC0wMDAwLTAwMDAtMDAwMDAwMDAwMDAw",
"view:off_nadir": 7.56,
"view:sun_elevation": 42,
"view:sun_azimuth": 165.4,
"plan_coverage": 75,
"start_datetime": "2025-07-01T00:10:59Z",
"end_datetime": "2025-07-01T00:11:59Z",
"platform": "GRUS-1A",
"constellation": "GRUS1",
"valid_until": "2025-07-01T00:11:59Z"
},
"links": [{"rel": "self",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/candidates/items/T3Bwb3J0dW5pdHlDYW5kaWRhdGU6OEFLckVYYTl6Z1lSekoyUA==",
"type": "application/geo+json"
},
{"rel": "parent",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/plans/items/VGFza1BsYW46MDAwMDAwMDAtMDAwMC0wMDAwLTAwMDAtMDAwMDAwMDAwMDAw",
"type": "application/geo+json"
}
]
}
],
"links": [{"rel": "self",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/candidates/items/?limit=10&offset=20",
"type": "application/geo+json"
},
{"rel": "next",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/candidates/items/?limit=10&offset=30",
"type": "application/geo+json"
},
{"rel": "prev",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/candidates/items/?limit=10&offset=10",
"type": "application/geo+json"
}
],
"numberMatched": 135
}

Task Candidate Details

Data about a Candidate

Authorizations:

oauth_token

path Parameters

candidateId

required

string

unique identifier for a Task Candidate

Responses

Response Schema: application/geo+json

type

required

string

Value: "Feature"

id

required

string

required

object

type required	string Value: "Polygon"
coordinates required	Array of arrays

required

object

task_plan_id	string The original Task Plan that this Candidate is for
view:off_nadir required	number <double> [ 0 .. 90 ] The angle from the sensor between nadir (straight down) and the scene center. Measured in degrees (0-90)
view:sun_elevation required	number <double> [ -90 .. 90 ] Sun elevation angle. The angle from the tangent of the scene center point to the sun. Measured from the horizon in degrees (-90-90)
view:sun_azimuth required	number <double> [ 0 .. 360 ] Sun azimuth angle. From the scene center point on the ground, this is the angle between truth north and the sun. Measured clockwise in degrees (0-360).
plan_coverage required	number <double> [ 0 .. 100 ] Percentage of the Task Plan AOI this candidate footprint covers. Measured in percent (0-100).
start_datetime required	string <date-time> Time the candidate capture is expected to start
end_datetime required	string <date-time> Time the candidate capture is expected to end
platform required	string Enum: "GRUS-1A" "GRUS-1B" "GRUS-1C" "GRUS-1D" "GRUS-1E" Satellite that will take the capture
constellation required	string Value: "GRUS1"
valid_until required	string <date-time> Time in the future this candidate will no longer be valid to schedule. Please schedule the candidate before this date.

required

Array of objects (link)

Array

href required	string
rel required	string
type	string
hreflang	string
title	string
length	integer

Response samples

200

Content type

application/geo+json

{"type": "Feature",
"id": "T3Bwb3J0dW5pdHlDYW5kaWRhdGU6OEFLckVYYTl6Z1lSekoyUA==",
"geometry": {"type": "Polygon",
"coordinates": [ ]
},
"properties": {"task_plan_id": "VGFza1BsYW46MDAwMDAwMDAtMDAwMC0wMDAwLTAwMDAtMDAwMDAwMDAwMDAw",
"view:off_nadir": 7.56,
"view:sun_elevation": 42,
"view:sun_azimuth": 165.4,
"plan_coverage": 75,
"start_datetime": "2025-07-01T00:10:59Z",
"end_datetime": "2025-07-01T00:11:59Z",
"platform": "GRUS-1A",
"constellation": "GRUS1",
"valid_until": "2025-07-01T00:11:59Z"
},
"links": [{"rel": "self",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/candidates/items/T3Bwb3J0dW5pdHlDYW5kaWRhdGU6OEFLckVYYTl6Z1lSekoyUA==",
"type": "application/geo+json"
},
{"rel": "parent",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/plans/items/VGFza1BsYW46MDAwMDAwMDAtMDAwMC0wMDAwLTAwMDAtMDAwMDAwMDAwMDAw",
"type": "application/geo+json"
}
]
}

Task Requests

Request a capture be scheduled. A Task Request has information about the scheduled capture and processed data. Task Requests are limited and your account may be charged.

Task Request Status:

After Tasks reach 'DATA_AVAILABLE' status assets can be fetched from the STAC API.

List Task Requests

List your Tasks

Authorizations:

oauth_token

query Parameters

limit	number <integer> [ 1 .. 20 ] Default: 10 Result pagination limit
offset	number <integer> >= 1 Result pagination offset

Responses

Response Schema: application/geo+json

type

required

string

Value: "FeatureCollection"

required

Array of objects (Task Request)

Array

type

required

string

Value: "Feature"

id

required

string

required

object

type required	string Value: "Polygon"
coordinates required	Array of arrays

required

object

name required	string Name of the task
created required	string <date-time> Time Task Request was created
valid_start required	string <date-time> Beginning of the capture window
valid_end required	string <date-time> End of the capture window
off_nadir_range required	Array of numbers <double> = 2 items [ items <double > [ 0 .. 90 ] ] Range of expected off-nadir angles capture
satellites required	Array of strings non-empty Items Enum: "GRUS-1A" "GRUS-1B" "GRUS-1C" "GRUS-1D" "GRUS-1E" List of expected satellites used for the capture
priority required	string Enum: "NORMAL" "EMERGENCY" What priority to assign to the Task Request.
cancel_until	null or string <date-time> Latest date Task Request can be canceled
task_plan_id	null or string The original Task Plan that this Request is for
status required	string Enum: "PLANNED" "PROCESSING" "DATA_AVAILABLE" "REJECTED" "FAILED" "CANCELLED" Current status of the Task Request
ag:capture_id	null or string If capture is taken this ID will be the id that uniquely identifies the capture in our system.

required

Array of objects (link)

Array

href required	string
rel required	string
type	string
hreflang	string
title	string
length	integer

required

Array of objects (link)

Array

href required	string
rel required	string
type	string
hreflang	string
title	string
length	integer

numberMatched

required

number <integer>

Response samples

200

Content type

application/geo+json

{"type": "FeatureCollection",
"features": [{"type": "Feature",
"id": "VGFzazowMDAwMDAwMC0wMDAwLTAwMDAtMDAwMC0wMDAwMDAwMDAwMDA=",
"geometry": {"type": "Polygon",
"coordinates": [ ]
},
"properties": {"name": "My Task",
"created": "2025-07-03T12:10:45Z",
"valid_start": "2025-07-01T00:10:59Z",
"valid_end": "2025-07-14T00:00:00Z",
"off_nadir_range": [5.6,
5.9
],
"satellites": ["GRUS-1A"
],
"priority": "NORMAL",
"cancel_until": "2025-07-01T00:10:59Z",
"task_plan_id": "VGFza1BsYW46MDAwMDAwMDAtMDAwMC0wMDAwLTAwMDAtMDAwMDAwMDAwMDAw",
"status": "PLANNED",
"ag:capture_id": null
},
"links": [{"rel": "self",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/requests/items/VGFzazowMDAwMDAwMC0wMDAwLTAwMDAtMDAwMC0wMDAwMDAwMDAwMDA=",
"type": "application/geo+json"
},
{"rel": "parent",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/plans/items/VGFzazowMDAwMDAwMC0wMDAwLTAwMDAtMDAwMC0wMDAwMDAwMDAwMDA=",
"type": "application/geo+json"
},
{"rel": "assets",
"href": "https://sandbox-api.axelglobe.com/stac/v1/catalogs/axelglobe/search?filter=ag:capture_id = 'cmFuZG9tc3RyaW5n'",
"type": "application/geo+json"
}
]
}
],
"links": [{"rel": "self",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/requests/items/?limit=10&offset=20",
"type": "application/geo+json"
},
{"rel": "next",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/requests/items/?limit=10&offset=30",
"type": "application/geo+json"
},
{"rel": "prev",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/requests/items/?limit=10&offset=10",
"type": "application/geo+json"
}
],
"numberMatched": 35
}

Create Task request

Create a new Task. To conform to API standards this request is GeoJSON, however when proving a Candidate ID the Polygon geometry should be left empty.

Authorizations:

oauth_token

Request Body schema: application/json
required

Create a new Task

type

required

string

Value: "Feature"

required

object

type required	string Value: "Polygon"
coordinates required	Array of arrays Empty array when providing `candidate_id`

required

object

name required	string [ 1 .. 64 ] characters ^(?=.[ -~])(?!.[.~\|\/${}%\\]).*$
candidate_id required	string
priority required	string Enum: "NORMAL" "EMERGENCY"

Responses

Response Schema: application/geo+json

type

required

string

Value: "Feature"

id

required

string

required

object

type required	string Value: "Polygon"
coordinates required	Array of arrays

required

object

name required	string Name of the task
created required	string <date-time> Time Task Request was created
valid_start required	string <date-time> Beginning of the capture window
valid_end required	string <date-time> End of the capture window
off_nadir_range required	Array of numbers <double> = 2 items [ items <double > [ 0 .. 90 ] ] Range of expected off-nadir angles capture
satellites required	Array of strings non-empty Items Enum: "GRUS-1A" "GRUS-1B" "GRUS-1C" "GRUS-1D" "GRUS-1E" List of expected satellites used for the capture
priority required	string Enum: "NORMAL" "EMERGENCY" What priority to assign to the Task Request.
cancel_until	null or string <date-time> Latest date Task Request can be canceled
task_plan_id	null or string The original Task Plan that this Request is for
status required	string Enum: "PLANNED" "PROCESSING" "DATA_AVAILABLE" "REJECTED" "FAILED" "CANCELLED" Current status of the Task Request
ag:capture_id	null or string If capture is taken this ID will be the id that uniquely identifies the capture in our system.

required

Array of objects (link)

Array

href required	string
rel required	string
type	string
hreflang	string
title	string
length	integer

Request samples

Payload

Content type

application/json

{"type": "Feature",
"geometry": {"type": "Polygon",
"coordinates": [ ]
},
"properties": {"name": "July rice crop monitoring",
"candidate_id": "T3Bwb3J0dW5pdHlDYW5kaWRhdGU6OEFLckVYYTl6Z1lSekoyUA==",
"priority": "NORMAL"
}
}

Response samples

201

Content type

application/geo+json

{"type": "Feature",
"id": "VGFzazowMDAwMDAwMC0wMDAwLTAwMDAtMDAwMC0wMDAwMDAwMDAwMDA=",
"geometry": {"type": "Polygon",
"coordinates": [ ]
},
"properties": {"name": "My Task",
"created": "2025-07-03T12:10:45Z",
"valid_start": "2025-07-01T00:10:59Z",
"valid_end": "2025-07-14T00:00:00Z",
"off_nadir_range": [5.6,
5.9
],
"satellites": ["GRUS-1A"
],
"priority": "NORMAL",
"cancel_until": "2025-07-01T00:10:59Z",
"task_plan_id": "VGFza1BsYW46MDAwMDAwMDAtMDAwMC0wMDAwLTAwMDAtMDAwMDAwMDAwMDAw",
"status": "PLANNED",
"ag:capture_id": null
},
"links": [{"rel": "self",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/requests/items/VGFzazowMDAwMDAwMC0wMDAwLTAwMDAtMDAwMC0wMDAwMDAwMDAwMDA=",
"type": "application/geo+json"
},
{"rel": "parent",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/plans/items/VGFzazowMDAwMDAwMC0wMDAwLTAwMDAtMDAwMC0wMDAwMDAwMDAwMDA=",
"type": "application/geo+json"
},
{"rel": "assets",
"href": "https://sandbox-api.axelglobe.com/stac/v1/catalogs/axelglobe/search?filter=ag:capture_id = 'cmFuZG9tc3RyaW5n'",
"type": "application/geo+json"
}
]
}

Task Request Details

Information about a Request.

Authorizations:

oauth_token

path Parameters

taskRequestId

required

string

unique identifier for a Task Request

Responses

Response Schema: application/geo+json

type

required

string

Value: "Feature"

id

required

string

required

object

type required	string Value: "Polygon"
coordinates required	Array of arrays

required

object

name required	string Name of the task
created required	string <date-time> Time Task Request was created
valid_start required	string <date-time> Beginning of the capture window
valid_end required	string <date-time> End of the capture window
off_nadir_range required	Array of numbers <double> = 2 items [ items <double > [ 0 .. 90 ] ] Range of expected off-nadir angles capture
satellites required	Array of strings non-empty Items Enum: "GRUS-1A" "GRUS-1B" "GRUS-1C" "GRUS-1D" "GRUS-1E" List of expected satellites used for the capture
priority required	string Enum: "NORMAL" "EMERGENCY" What priority to assign to the Task Request.
cancel_until	null or string <date-time> Latest date Task Request can be canceled
task_plan_id	null or string The original Task Plan that this Request is for
status required	string Enum: "PLANNED" "PROCESSING" "DATA_AVAILABLE" "REJECTED" "FAILED" "CANCELLED" Current status of the Task Request
ag:capture_id	null or string If capture is taken this ID will be the id that uniquely identifies the capture in our system.

required

Array of objects (link)

Array

href required	string
rel required	string
type	string
hreflang	string
title	string
length	integer

Response samples

200

Content type

application/geo+json

{"type": "Feature",
"id": "VGFzazowMDAwMDAwMC0wMDAwLTAwMDAtMDAwMC0wMDAwMDAwMDAwMDA=",
"geometry": {"type": "Polygon",
"coordinates": [ ]
},
"properties": {"name": "My Task",
"created": "2025-07-03T12:10:45Z",
"valid_start": "2025-07-01T00:10:59Z",
"valid_end": "2025-07-14T00:00:00Z",
"off_nadir_range": [5.6,
5.9
],
"satellites": ["GRUS-1A"
],
"priority": "NORMAL",
"cancel_until": "2025-07-01T00:10:59Z",
"task_plan_id": "VGFza1BsYW46MDAwMDAwMDAtMDAwMC0wMDAwLTAwMDAtMDAwMDAwMDAwMDAw",
"status": "PLANNED",
"ag:capture_id": null
},
"links": [{"rel": "self",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/requests/items/VGFzazowMDAwMDAwMC0wMDAwLTAwMDAtMDAwMC0wMDAwMDAwMDAwMDA=",
"type": "application/geo+json"
},
{"rel": "parent",
"href": "https://sandbox-api.axelglobe.com/wfs/tasking/v2/collections/plans/items/VGFzazowMDAwMDAwMC0wMDAwLTAwMDAtMDAwMC0wMDAwMDAwMDAwMDA=",
"type": "application/geo+json"
},
{"rel": "assets",
"href": "https://sandbox-api.axelglobe.com/stac/v1/catalogs/axelglobe/search?filter=ag:capture_id = 'cmFuZG9tc3RyaW5n'",
"type": "application/geo+json"
}
]
}

Cancel a Task Request

Cancel a Request

Authorizations:

oauth_token

path Parameters

taskRequestId

required

string

unique identifier for a Task Request

Responses

Response samples

204

Content type

application/json

""

AxelGlobe Tasking API (2.0.6)
